NP – sealed MOSFET for cooling fan
NP – sealed MOSFET for cooling fan Back
 PDF

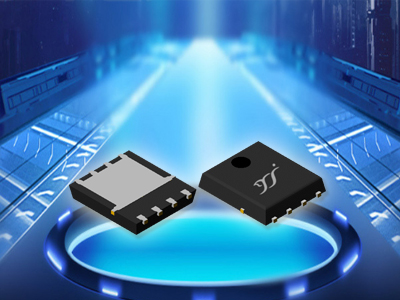

Introduction 1. The product is DFN5060-8LN+P dual-core frame sealing package. Compared with DFN3333 (3.3X3.3mm) package， which have better heat dissipation capacity, stronger output power and current. It’s more suitable for fans with higher power requirements;
2. The product has the characteristics of strong over-current capability, lower thermal resistance and a wider range of SOA;
3. NMOS and PMOS are sealed to simplify the bridge structure while retaining the flexibility of engineers' application;
4. The Vds can withstand voltages of 30V, 60V, and 100V respectively. It applies to the 12V, 24V, and 48V fan systems.
Features
SPECIFICATION

YJG40NP03A YJG20NP06A YJG10NP10A

Related new products

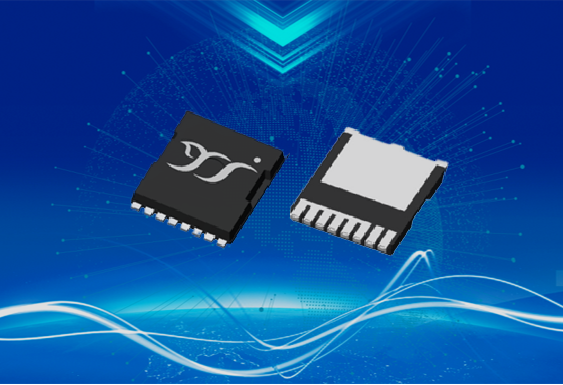

TOLL N100V MOSFETs for Industrial

Three-phase Rectifier Module N5/N6

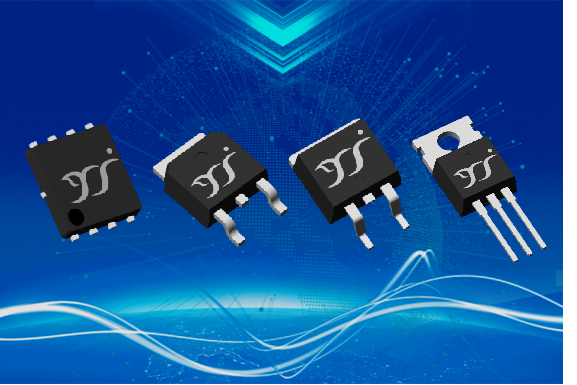

TO-252 Package Power Transistor for Motor Driver & High Power Frequency Converter

IGBT Discrete For PTC of Auto Industry

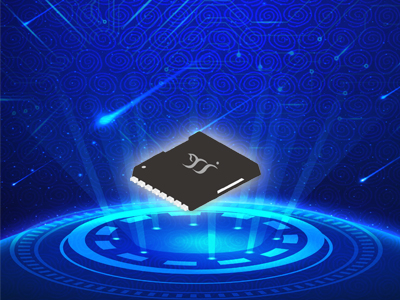

100V TOLL Package MOSFET

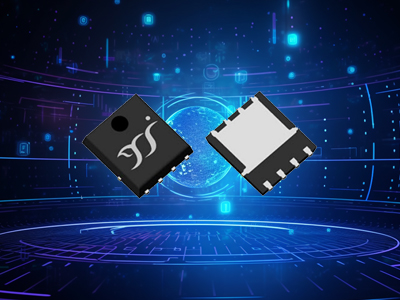

High-side+Low-side PDFN5060 N30V Mosfet for PC Mainboard
